Sega Genesis/Megadrive/SMS/Atari Controller to USB Adapter (v3)
Sega Genesis/Megadrive/SMS/Atari Controller to USB Adapter (v3)
Sega Genesis/Megadrive/SMS/Atari Controller to USB Adapter (v3)
Sega Genesis/Megadrive/SMS/Atari Controller to USB Adapter (v3)
Sega Genesis/Megadrive/SMS/Atari Controller to USB Adapter (v3)
Sega Genesis/Megadrive/SMS/Atari Controller to USB Adapter (v3)
Sega Genesis/Megadrive/SMS/Atari Controller to USB Adapter (v3)
Sega Genesis/Megadrive/SMS/Atari Controller to USB Adapter (v3)

Sega Genesis/Megadrive/SMS/Atari Controller to USB Adapter (v3)

$49.99 $0.00
Shipping calculated at checkout.

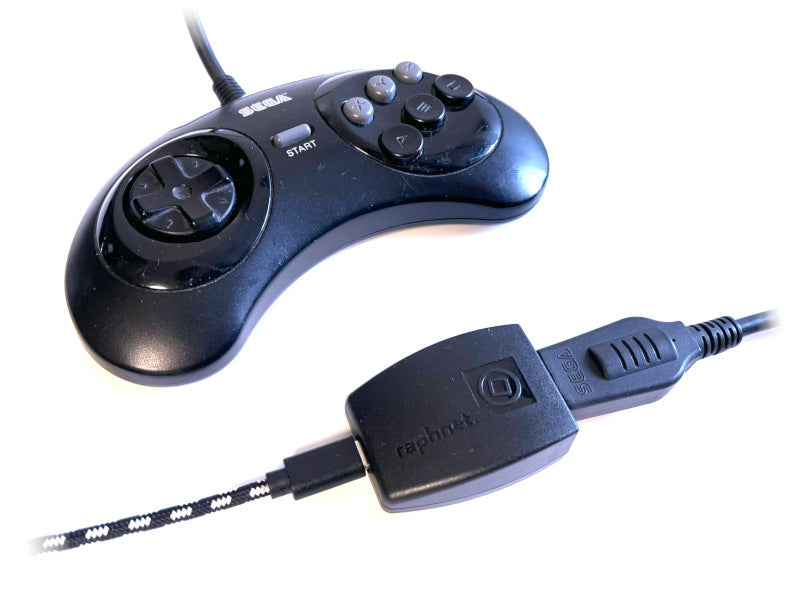

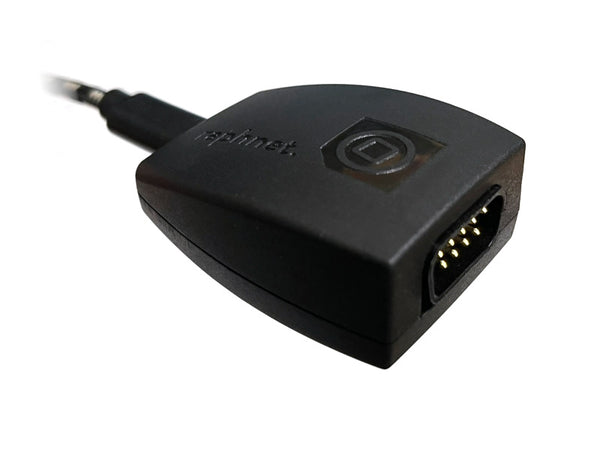

An adapter for connecting Genesis/Megadrive (3/6 button), SMS and Atari-style controllers to an USB port.

Description

This adapter lets you use Megadrive, SMS or Atari-style controllers on your PC. The multitap is also supported, enabling simultaneous use of up to 4 Megadrive controllers. This adapter is built using advXarch technology for low latency.

Specifications:
  • Supported controllers:

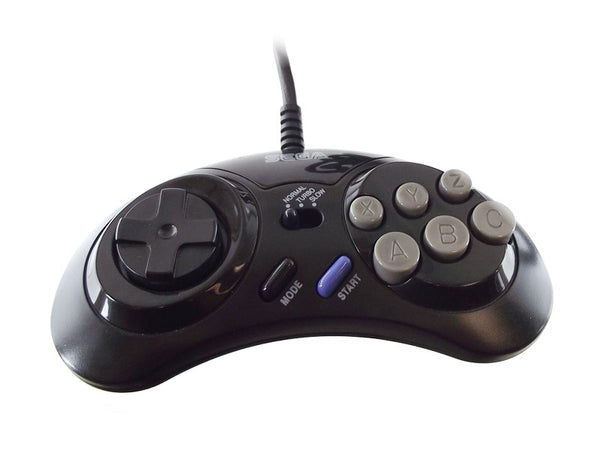

    • 6 button Megadrive controllers
    • 3 button Megadrive controllers

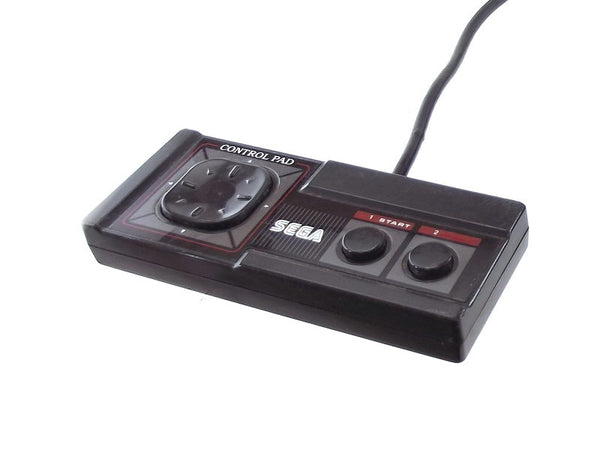

    • Sega master system controllers

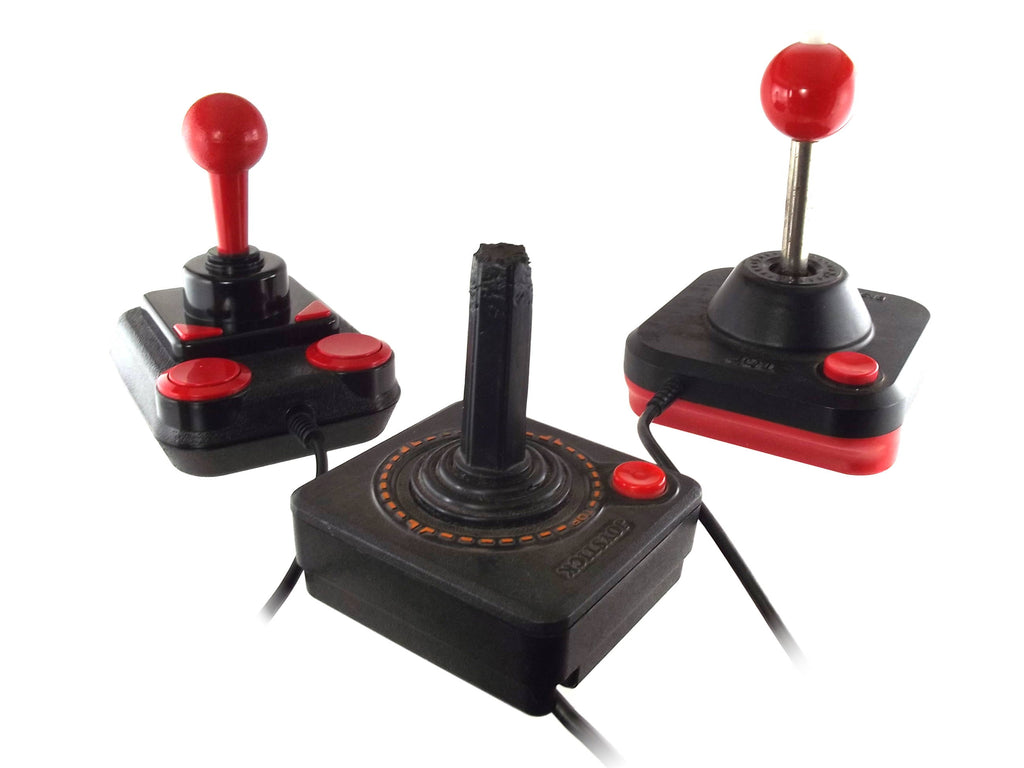

    • Atari-style joysticks

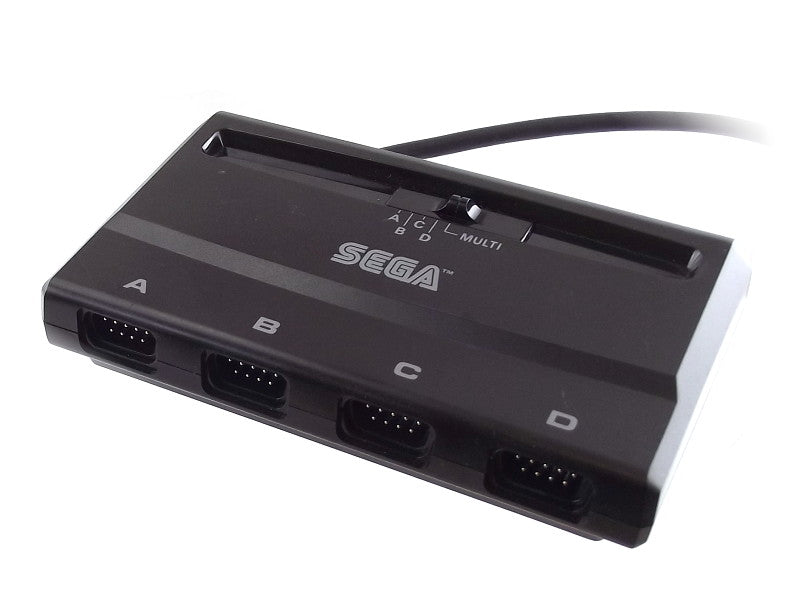

    • Megadrive multi-taps

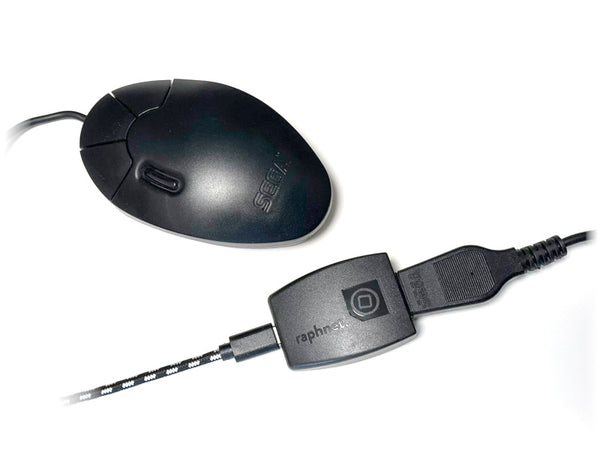

    • Megadrive mouse (megamouse)
  • Very low latency
  • Up to 4 Megadrive controllers can be used simultaneously with a multi-tap
  • Works under Linux, Mac OS X and Windows
  • Updateable firmware
  • 1 meter (~3ft) USB A to USB C cable included

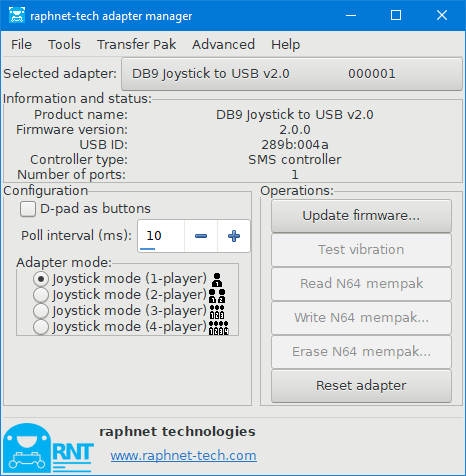

Management tool:
  • Easy to use user interface able to manage several adapters.
  • Adapter firmware version display
  • Firmware update function
  • Displays the type of controller detected
  • Adapter configuration:
    • Configure D-Pad as axes or buttons
    • 1, 2, 3 and 4-player modes
Total Latency information:
  • Default setting: 6ms
  • Minimum settings: 2ms
Drivers:
  • None! Uses standard drivers included with supported operating systems.
  • Multitap not included. Without a multitap, only one controller can be connected.

FAQ

Q: What is the latency when using a multitap?
A: Reading the state of 4 controllers through a multitap takes less than 1ms, so it makes no difference. It is as low as when reading a single controller. (That is, unless the multitap itself adds latency, but we don't know if it does...)

Q: Can I use a Megadrive multitap to connect more than 1 SMS or Atari controller?
A: No, unfortunately the Megadrive multitap only supports Megadrive controllers. To use more than 1 Atari or SMS controller, you will need one adapter per controller.

Q: Can I connect 4 adapters to concurrently use 4 Atari joysticks?
A: Yes! This has been reported to work fine with Atari800Win Plus 4.1.

Q: Does this adapter work with the C64 mini?
A: No, unfortunately it does not.
